5747845-4
Manufacturer:
TE Connectivity
Mfr.Part #:
5747845-4
Datasheet:
Description:

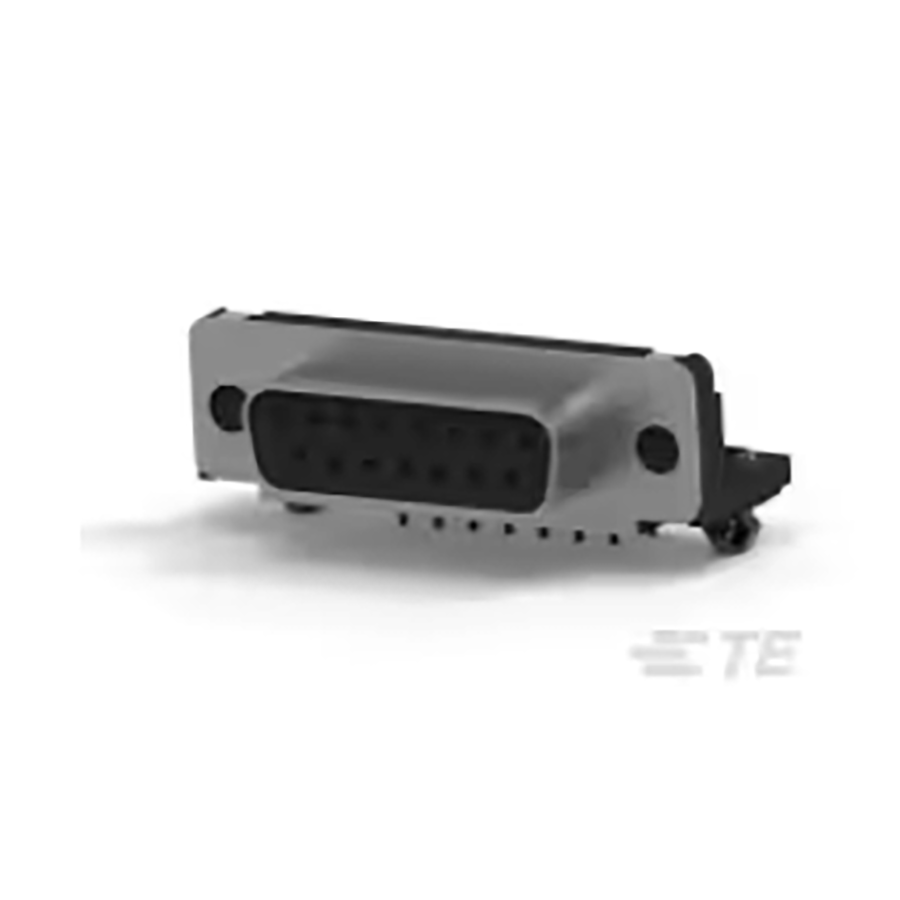

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Termination | Solder |
| Material | Steel |
| Packaging | Box |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin, Gold, Tin over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Type | Receptacle, Female Sockets |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Active |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | 105 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| size width | 18.8 mm |
| size length | 39.1 mm |
| size height | 12.5 mm |
| elv compliant | Compliant |
| Housing Color | Black |
| pin pitch | 2.74 mm |
| Shell Material | Steel |
Stock: 1052
Distributors
pcbx
pcbxUnit Price$2.42201
Ext.Price$2.42201
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.42201 | $2.42201 |
| 10 | $2.28437 | $22.84370 |
| 25 | $2.24077 | $56.01925 |
| 50 | $1.93385 | $96.69250 |
| 100 | $1.86959 | $186.95900 |
| 300 | $1.80747 | $542.24100 |
| 500 | $1.74741 | $873.70500 |
| 1000 | $1.68934 | $1689.34000 |
